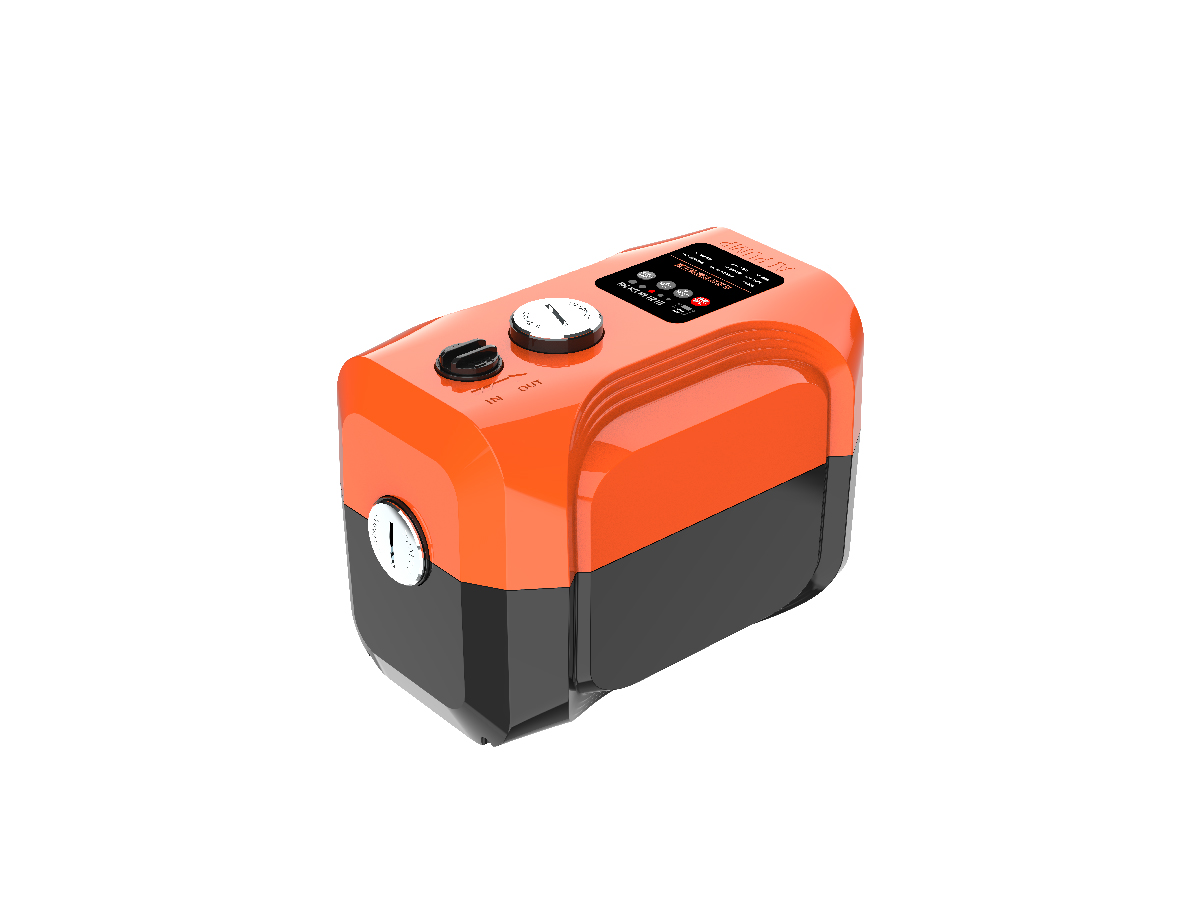

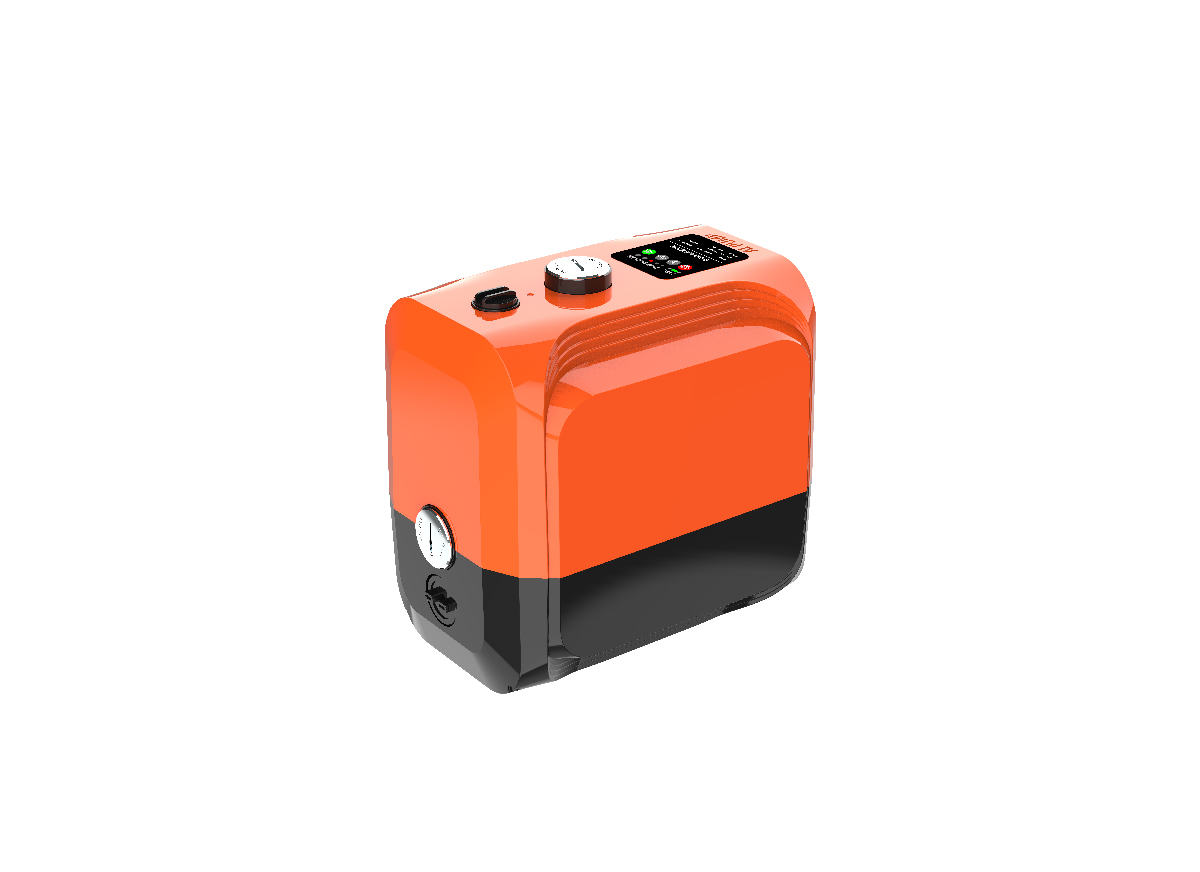

Household permanent magnet adaptive variable frequency booster pump
Household permanent magnet adaptive variable frequency booster pump
For hot & cold water
Constant pressure water supply
APPLICATION
· Well water lifting and water tower water filling
· Living water supply and garden irrigation
· Pipeline pressure boosting and supporting equipment (solar energy water supply system, water heater, etc.）
· Transfer clean water or non-corrosive liquid without solid particles and fibers
WORKING CONDITION
Liquid temperature | 0 - 100℃ |
Ambient temperature | 4 - 55℃ |
Max. suction | +9.5m |
Insulation | ClassH |
Waterproof rating | IP55 |
Duty cycle | S1 |
Input voltage | Single phase |
MODEL INSTRUCTION | |
125/BPAI/C/H20-Q2.0 | |
125: Power (W) of traditional single-phase motor | |
BPAI: Permanent magnet adaptive variable frequency booster pump | |
C: Product series | |
H20：Max. head 20m | |
Q2.0：Max. flow 2.0m³/h |
TECHNICAL PARAMETER (n=12000r/min)
Model | Voltage | Power | Max. flow | Max. flow | Max. head | Max. suction | Inlet&Outlet |
125/BPAI/C/H20-Q2.0 | DC30 | 105 | 2.0 | 33 | 20 | 3 | 1"×1" |
200/BPAI/C/H25-Q2.5 | DC36 | 126 | 2.3 | 38 | 25 | 3 | 1"×1" |
300/BPAI/C/H29-Q2.7 | DC40 | 160 | 3.2 | 53 | 28 | 5 | 1"×1" |
400/BPAI/C/H32-Q4.0 | DC48 | 200 | 4.0 | 67 | 30 | 6 | 1"×1" |
600/BPAI/C/H40-Q4.0 | DC36+36 | 252 | 4.0 | 67 | 40 | 9.5 | 1"×1" |
800/BPAI/C/H45-Q4.2 | DC40+40 | 320 | 4.2 | 70 | 45 | 9.5 | 1"×1" |
1100/BPAI/C/H50-Q4.5 | DC48+48 | 400 | 4.5 | 75 | 50 | 9.5 | 1"×1" |
