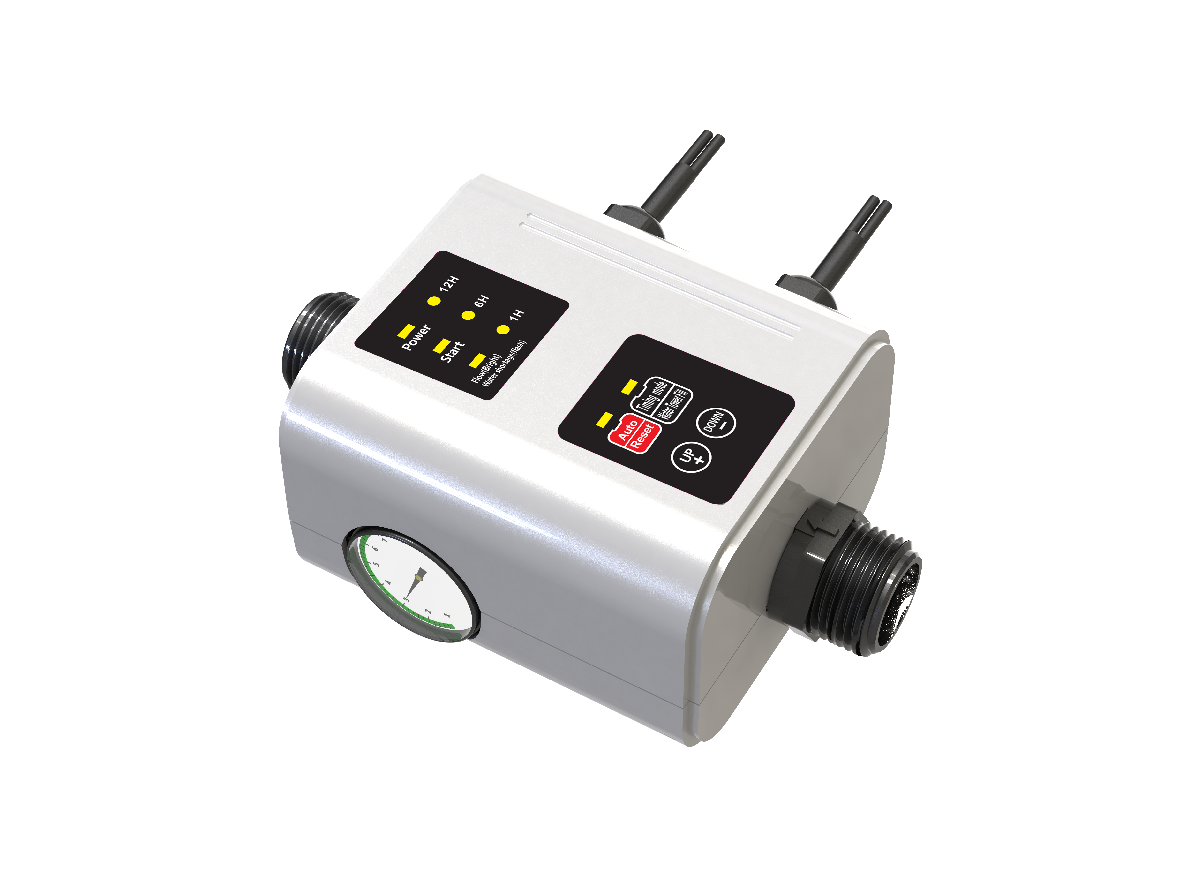

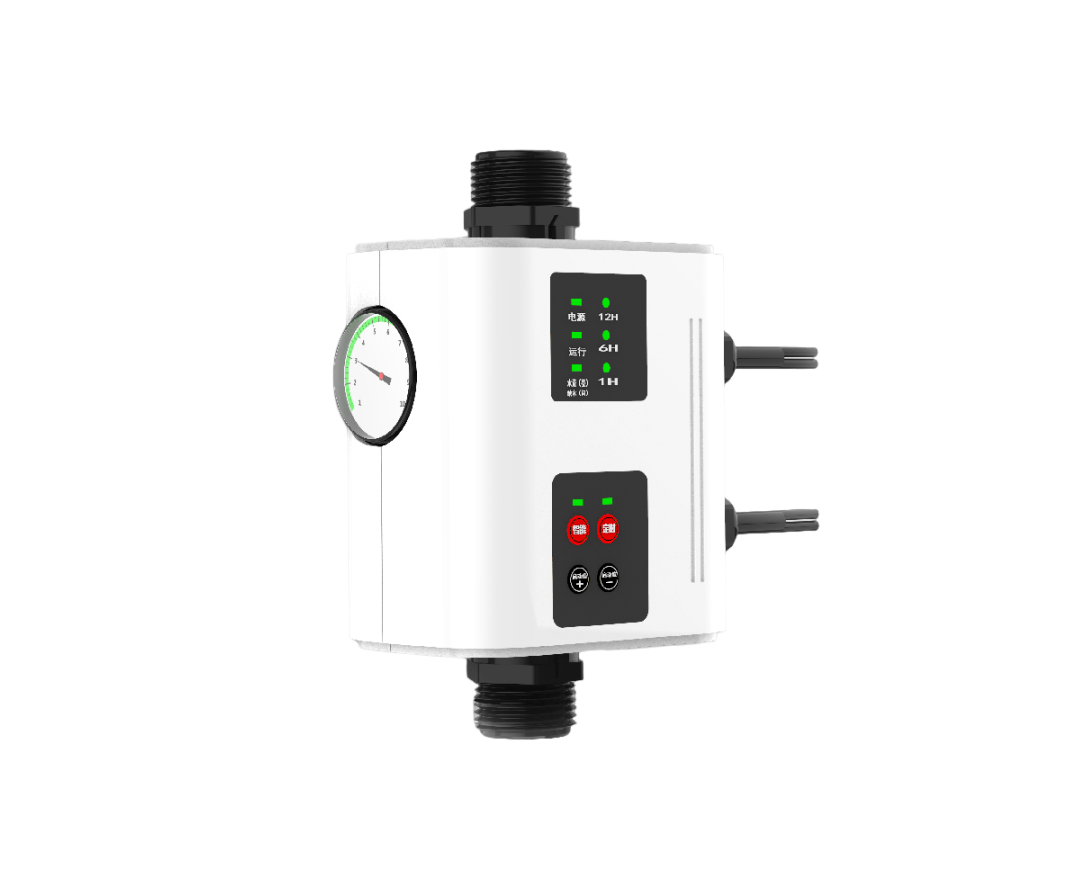

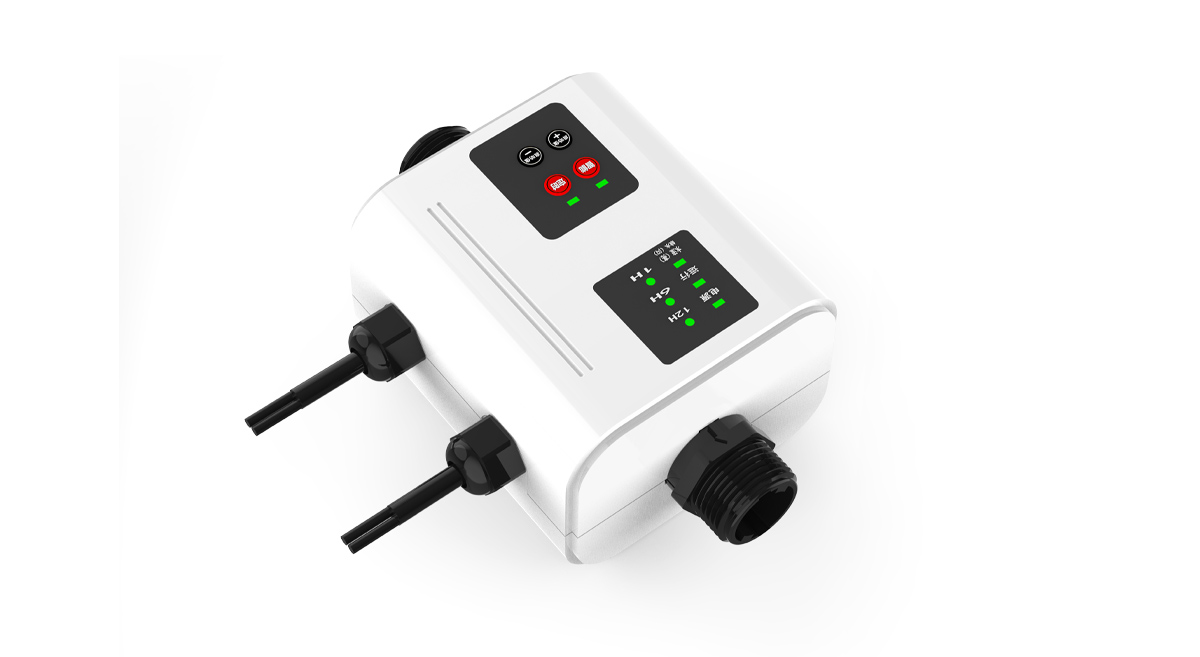

KG3A
KG3A
PRODUCT FEATURE
Motor power range: 0.1-2.2kW |
Input voltage range: AC 100-240V |
Frequency: 50/60Hz |
Max. current: 30A |
Liquid temperature: 0-100℃ |
Max. pressure: 10bar |
Waterproof rating: IP65 |
Applicable height: 0-100m |
Inlet&Outlet thread: 1" external thread |
APPLICATION
The adaptive intelligent controller is workable with different type of pumps, such as deep well submersible self-
priming pump. It can automatically identify the max pressure of the pump and set the starting pressure by certain percentage of pump's max pressure. Don't need to manually set the starting pressure in Auto mode.
TECHNICAL PARAMETER
Model | Power | Input voltage | Max. current | Frequency | N.W. | G.W. | Meas. | Meas. |
KG3A-2200(S) | 0.1-2.2 | 100-240 | 30 | 50/60 | 5 | 5.5 | 192*140*90 | 435*400*200 |
KG3A-2200(ST) | 0.1-2.2 | 100-240 | 30 | 50/60 | 5 | 5.5 | 192*140*90 | 435*400*200 |
KG3A-2200(SP) | 0.1-2.2 | 100-240 | 30 | 50/60 | 5.4 | 5.9 | 192*140*90 | 435*400*200 |
KG3A-2200(STP) | 0.1-2.2 | 100-240 | 30 | 50/60 | 5.4 | 5.9 | 192*140*90 | 435*400*200 |
"S" means adaptive function, "P" means pressure gauge, "T" means timing function
