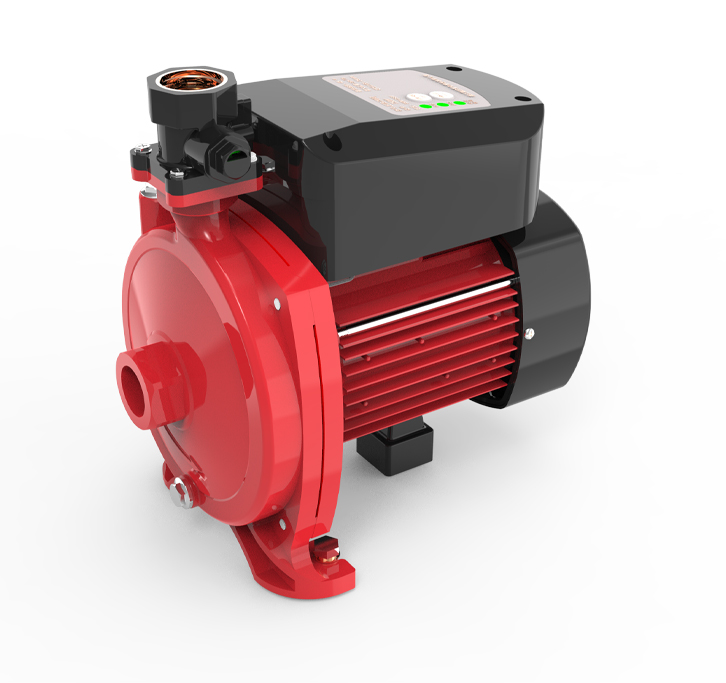

Intelligent centrifugal booster pump (A/AS)
Intelligent centrifugal booster pump (A/AS)

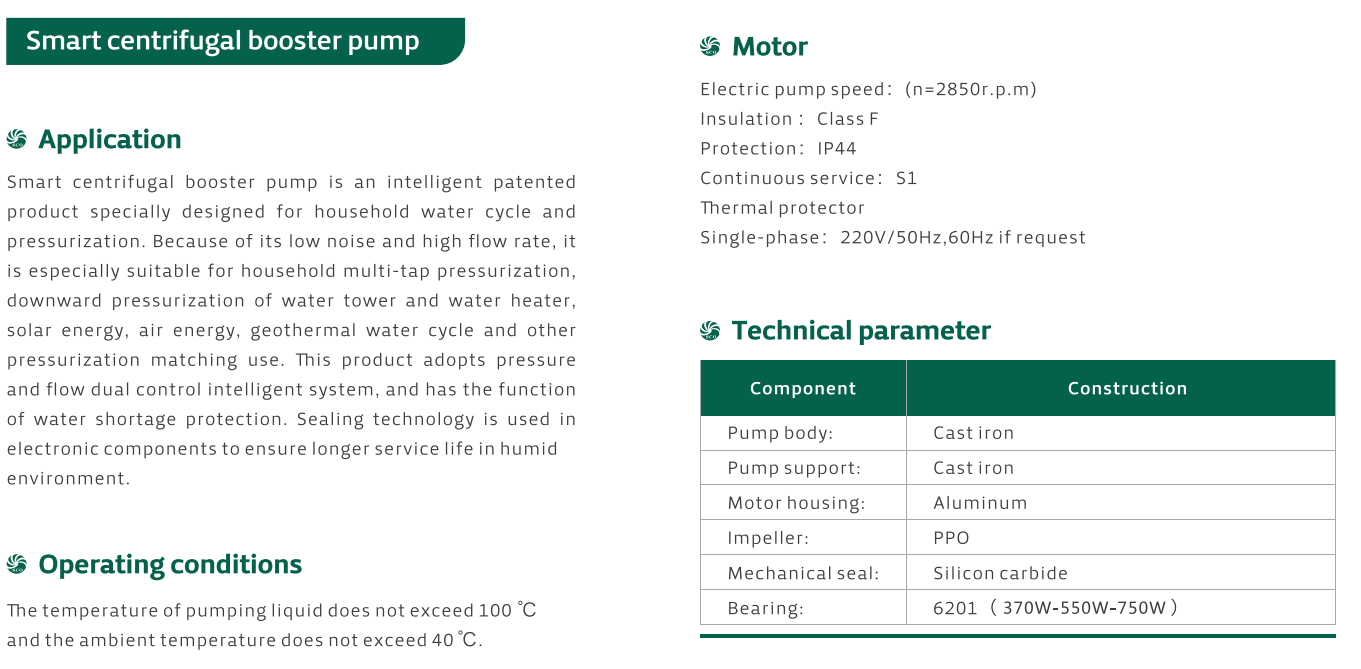

WORKING CONDITION
Max. liquid temperature | +100℃ |
Max. ambient temperature | +40℃ |
Insulation | Class F |
Waterproof rating | IP44 |
Duty cycle | S1 |
Input voltage | Single phase, 220V, 50/60Hz |
MODEL INSTRUCTION
25XCM/A (AS) -370(S) |
|
CPM: Centrifugal booster pump |
A：PPO inpeller |
AS: Stainless steel impeller |
370: Power (W) |
S: Adaptive fucntion |

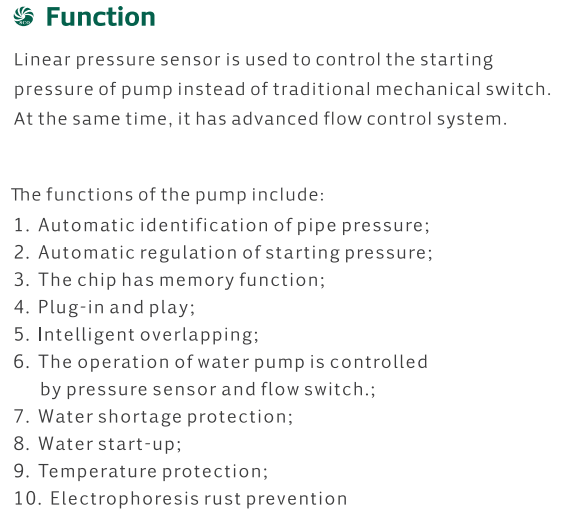

PRODUCT FEATURE
1, Adaptive function
Automatically identify the pipe pressure
Automatically regulate the starting pressure
2, Dual control system (pressure&flow switch)
Support stepless pressure regulation for pump with 0-100m head
3, Water shortage protection
4, Auto-start when tap water re-comes
5, Frequent start&stop protection
6, Thermal protection
7, Timing function (optional)
8, Electrophoresis, corrosion&rust resistant
9, Plug and play
10, Intelligent learning and memory function

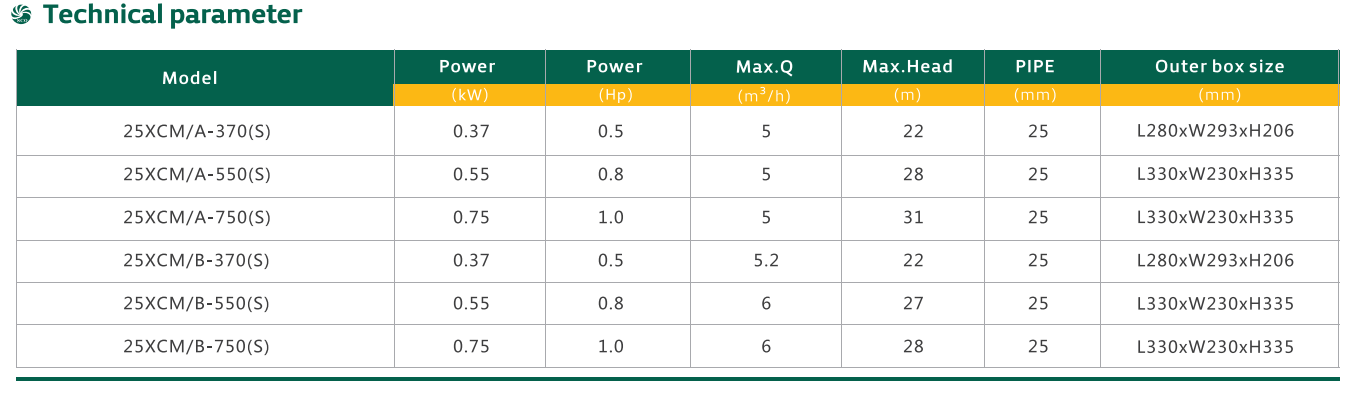

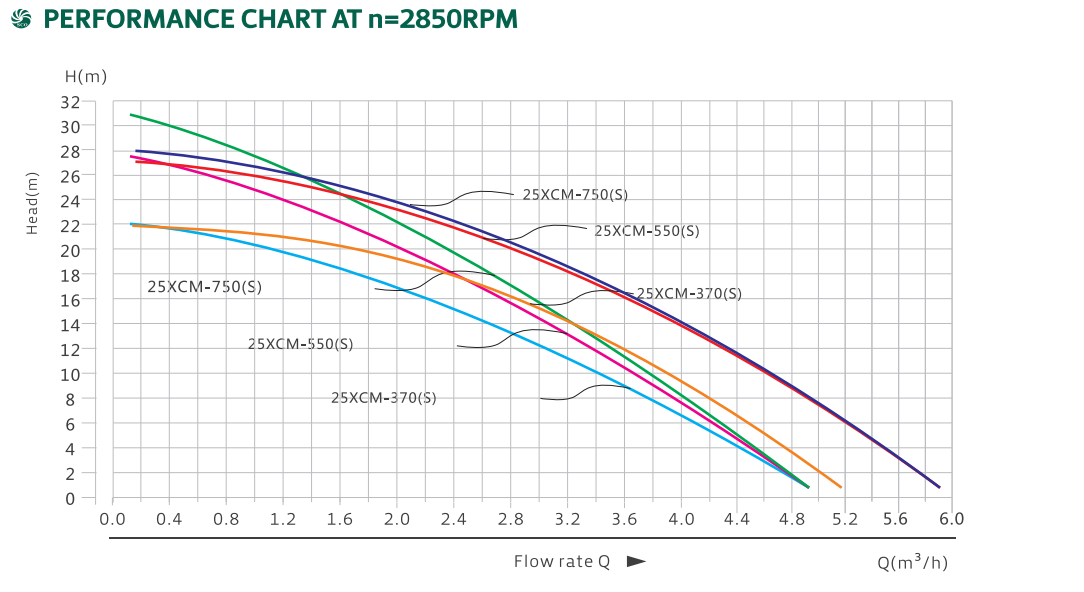

TECHNICAL PARAMETER (n=2850r/min)
Model | Power | Power | Max. flow | Max. flow | Max. head | Inlet&Outlet |
25XCM/A-370(S) | 370 | 0.5 | 5.0 | 83 | 22 | 1"×1" |
25XCM/A-550(S) | 550 | 0.75 | 5.0 | 83 | 28 | 1"×1" |
25XCM/A-750(S) | 750 | 1.0 | 5.0 | 83 | 30 | 1"×1" |
25XCM/AS-750(S) | 750 | 1.0 | 5.5 | 92 | 30 | 1"×1" |
