PRODUCT

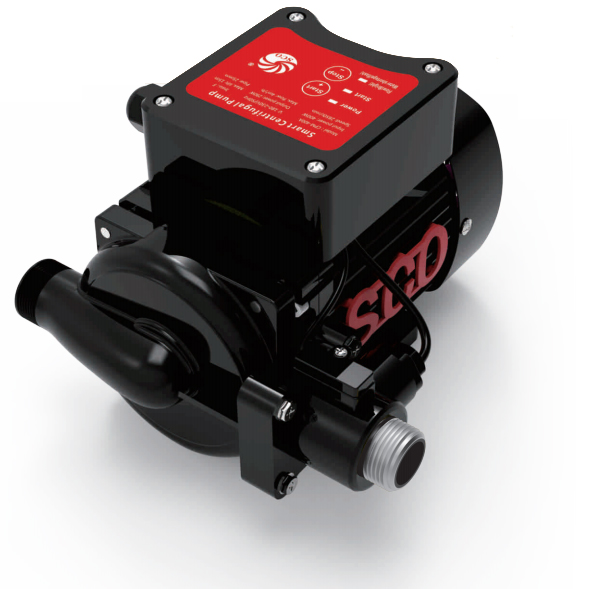

Intelligent centrifugal booster pump
Intelligent centrifugal booster pump
WORKING CONDITION
Max. liquid temperature | +100℃ |
Max. ambient temperature | +40℃ |
Insulation | Class F |
Waterproof rating | IP44 |
Duty cycle | S1 |
Input voltage | Single phase, 220V, 50/60Hz |
MODEL INSTRUCTION
20CPM-200(S) |
|
CPM: Centrifugal booster pump |
200: Power (W) |
S: Adaptive fucntion |

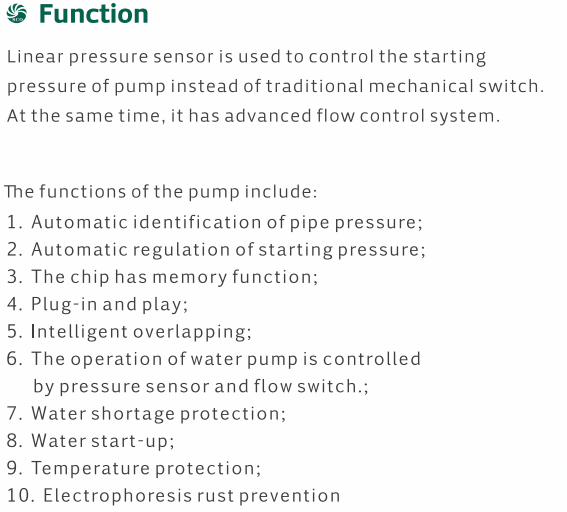

PRODUCT FEATURE
1, Adaptive function
Automatically identify the pipe pressure
Automatically regulate the starting pressure
2, Dual control system (pressure&flow switch)
Support stepless pressure regulation for pump with 0-100m head
3, Water shortage protection
4, Auto-start when tap water re-comes
5, Frequent start&stop protection
6, Thermal protection
7, Timing function (optional)
8, Electrophoresis, corrosion&rust resistant
9, Plug and play
10, Intelligent learning and memory function

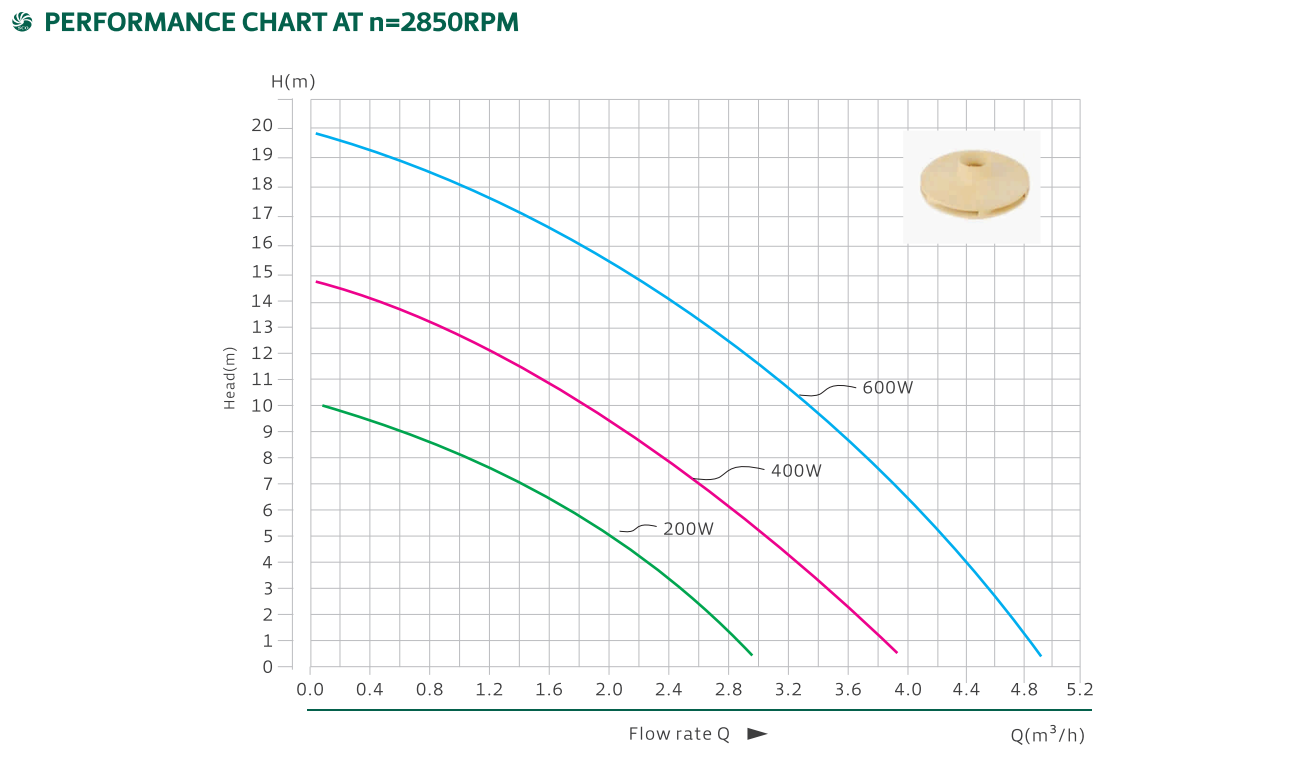

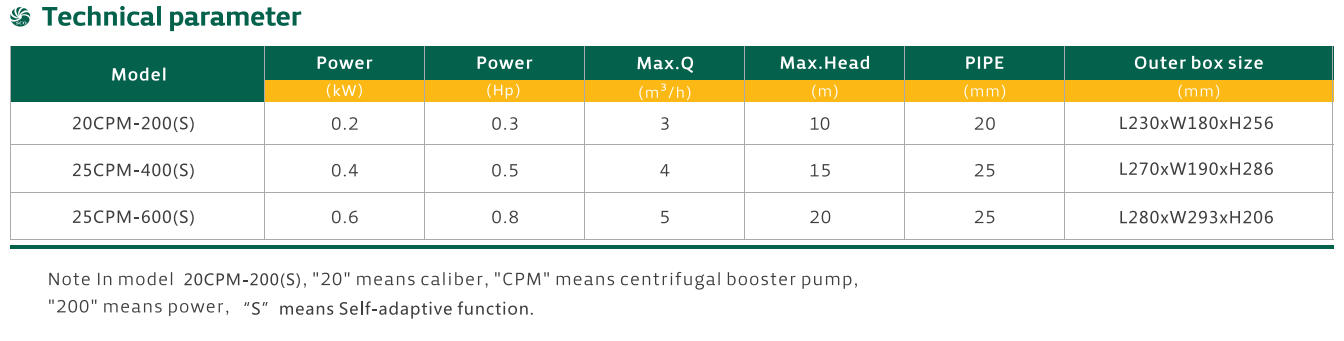

TECHNICAL PARAMETER (n=2850r/min)
Model | Power | Power | Max. flow | Max. flow | Max. head | Inlet&Outlet |
20CPM-200(S) | 200 | 0.3 | 3.0 | 50 | 10 | 3/4"×3/4" |
25CPM-400(S) | 400 | 0.5 | 4.0 | 67 | 15 | 1"×1" |
25CPM-600(S) | 600 | 0.8 | 5.0 | 83 | 20 | 1"×1" |
