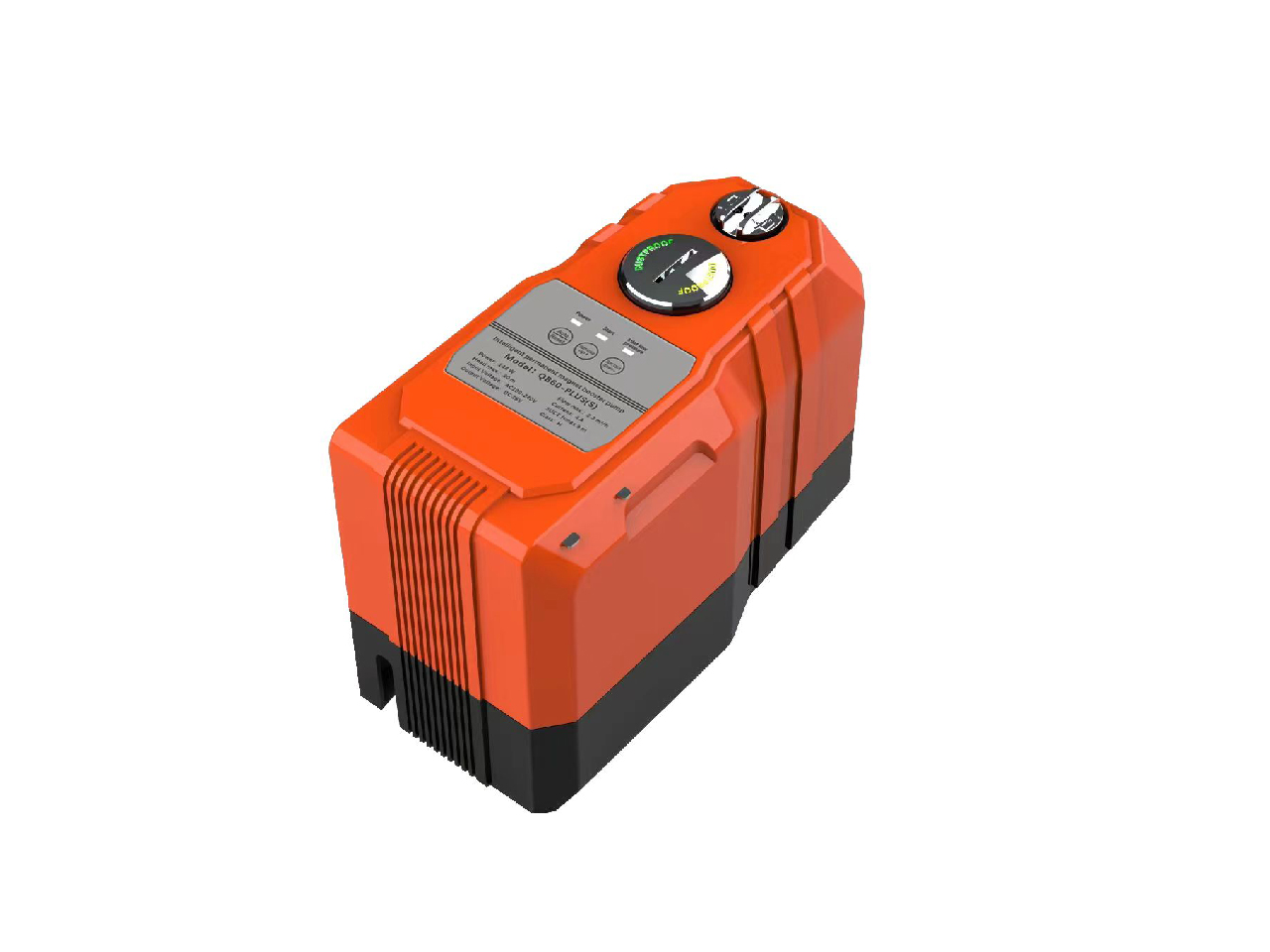

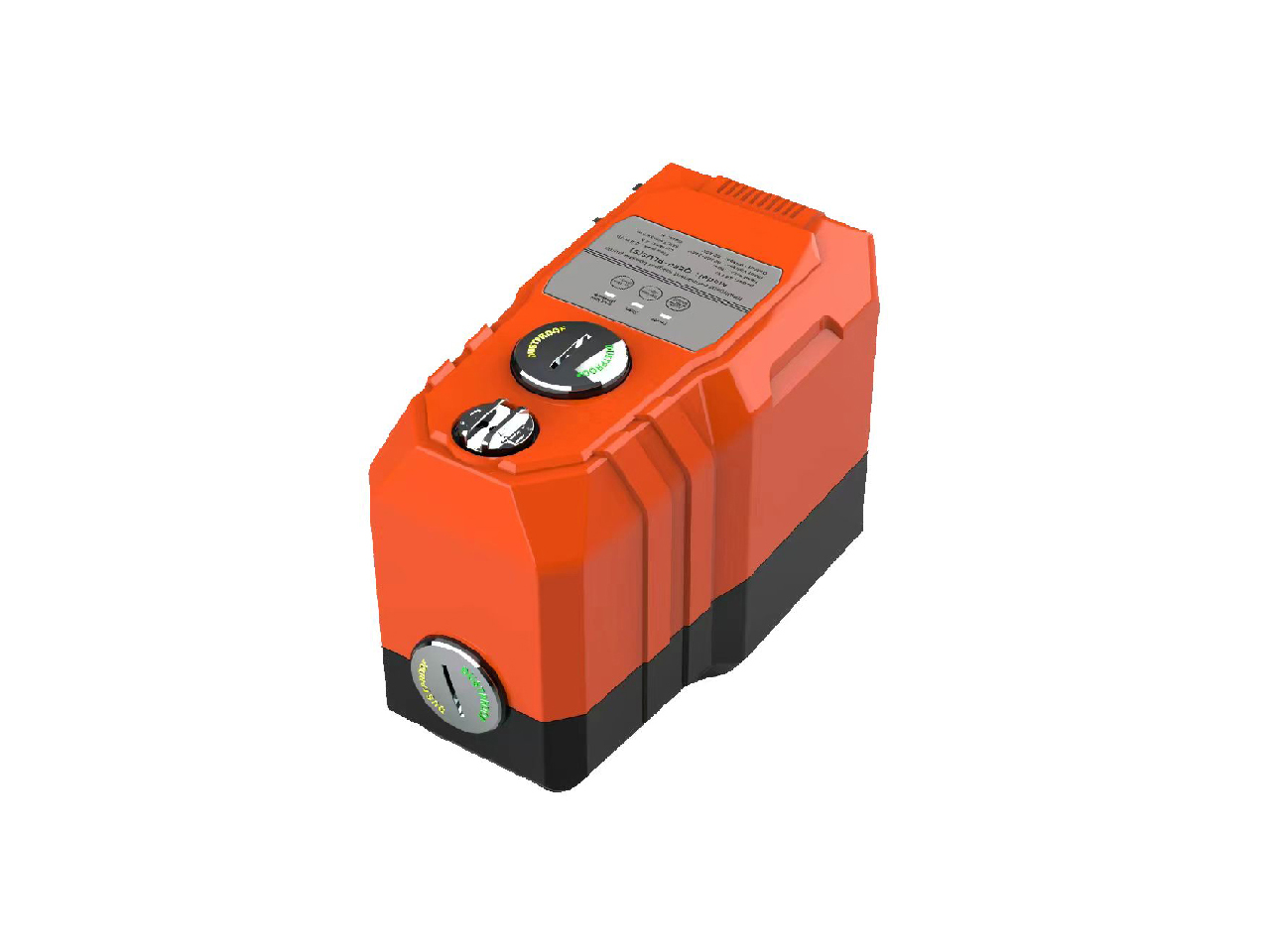

Whole house intelligent permanent magnet canned booster pump
Whole house intelligent permanent magnet canned booster pump
APPLICATION
· Well water lifting and water tower water filling
· Living water supply and garden irrigation
· Pipeline pressure boosting and supporting equipment (solar energy water supply system, water heater, etc.）
· Transfer clean water or non-corrosive liquid without solid particles and fibers
WORKING CONDITION
Liquid temperature | 0 - 100℃ |
Ambient temperature | 4 - 55℃ |
Max. suction | +9m |
Insulation | ClassH |
Waterproof rating | IP55 |
Duty cycle | S1 |
Input voltage | Single phase |
MODEL INSTRUCTION
25ZPZ/24V/B/H20-Q2.0 |
25: Inlet&outlet diameter (mm) |
ZPZ: Intelligent permanent magnet canned booster pump |
24V: DC - 24V |
B: Product series |
H20：Max. head 20m |
Q2.0：Max. flow 2.0m³/h |
TECHNICAL PARAMETER (n=12000r/min)
Model | Voltage | Power | Power | Max. flow | Max. flow | Max. head | Max. suction | Inlet&Outlet |
25ZPZ/24V/B/H20-Q2.0 | DC-24 | 84 | 0.1 | 2.0 | 33 | 20 | 9 | 1"×1" |
25ZPZ/30V/B/H25-Q2.2 | DC-30 | 105 | 0.1 | 2.2 | 37 | 25 | 9 | 1"×1" |
25ZPZ/36V/B/H30-Q2.4 | DC-36 | 126 | 0.2 | 2.4 | 40 | 30 | 9 | 1"×1" |
25ZPZ/40V/B/H35-Q2.5 | DC-40 | 160 | 0.2 | 2.5 | 42 | 35 | 9 | 1"×1" |
