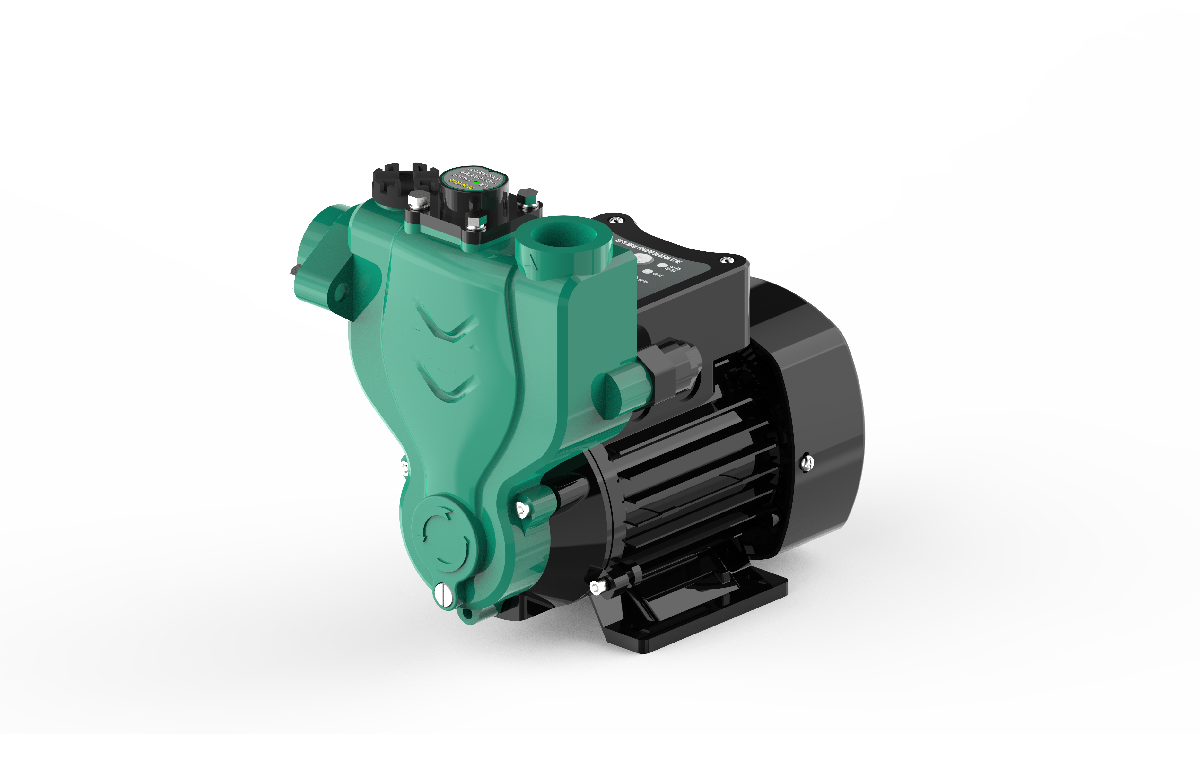

Intelligent self-priming pump (A)
Intelligent self-priming pump (A)
WORKING CONDITION
Max. liquid temperature | +100℃ |
Max. ambient temperature | +40℃ |
Max. suction | +8.5m |
Insulation | Class F |
Waterproof rating | IP44 |
Duty cycle | S1 |
Input voltage | Single phase, 220V, 50/60Hz |
MODEL INSTRUCTION
25WZB/A-128(A) |
25：Inlet&outlet diameter (mm) |
WZB: Self-priming pump |
A: Product series |
128: Power (W) |
A: Adaptive fucntion |
PRODUCT FEATURE
1, Adaptive function
Automatically identify the pipe pressure
Automatically regulate the starting pressure
2, Dual control system (pressure&flow switch)
Support stepless pressure regulation for pump with 0-100m head
3, Water shortage protection
4, Auto-start when tap water re-comes
5, Frequent start&stop protection
6, Thermal protection
7, Timing function (optional)
8, Electrophoresis, corrosion&rust resistant
9, Plug and play
10, Intelligent learning and memory function
TECHNICAL PARAMETER (n=2850r/min)
Model | Power | Power | Max. flow | Max. flow | Max. head | Max. suction | Inlet&Outlet |
25WZB/A-128(S) | 128 | 0.2 | 1.8 | 30 | 22 | 6 | 1"×1" |
25WZB/A-200(S) | 200 | 0.3 | 2.0 | 33 | 25 | 6 | 1"×1" |
25WZB/A-300(S) | 300 | 0.4 | 2.2 | 37 | 30 | 8.5 | 1"×1" |
25WZB/A-400(S) | 400 | 0.5 | 2.2 | 37 | 35 | 8.5 | 1"×1" |
25WZB/A-600(S) | 600 | 0.8 | 3.3 | 55 | 40 | 8.5 | 1"×1" |
25WZB/A-800(S) | 800 | 1.1 | 3.6 | 60 | 45 | 8.5 | 1"×1" |
