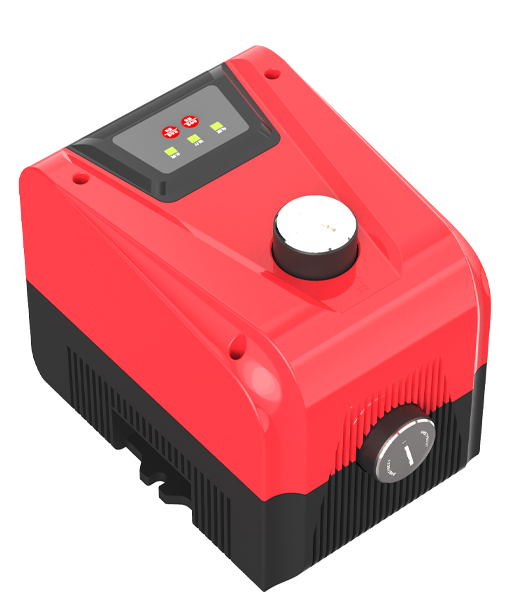

Intelligent Jet pump (B)
Intelligent Jet pump (B)
WORKING CONDITION
Max. liquid temperature | +60℃ |
Max. ambient temperature | +40℃ |
Insulation | Class F |
Waterproof rating | IP44 |
Duty cycle | S1 |
Input voltage | Single phase, 220V, 50/60Hz |
MODEL INSTRUCTION
25JET/B-550(S) |
|
JET: Jet pump |
A: Product series |
500: Power (W) |
S: Adaptive fucntion |
PRODUCT FEATURE
1, Adaptive function
Automatically identify the pipe pressure
Automatically regulate the starting pressure
2, Dual control system (pressure&flow switch)
Support stepless pressure regulation for pump with 0-100m head
3, Water shortage protection
4, Auto-start when tap water re-comes
5, Frequent start&stop protection
6, Thermal protection
7, Timing function (optional)
8, Electrophoresis, corrosion&rust resistant
9, Plug and play
10, Intelligent learning and memory function
TECHNICAL PARAMETER (n=2850r/min)
Model | Power | Power | Max. flow | Max. flow | Max. head | Max. suction | Inlet&Outlet |
25JET/B-550(S) | 550 | 0.75 | 3.0 | 50 | 40 | 9.5 | 1"×1" |
25JET/B-750(S) | 750 | 1.0 | 3.6 | 60 | 42 | 9.5 | 1"×1" |
25JET/B-1100(S) | 1100 | 1.5 | 3.8 | 63 | 45 | 9.5 | 1"×1" |
25JET/B-1500(S) | 1500 | 2.0 | 4.0 | 67 | 48 | 9.5 | 1"×1" |
