Intelligent self-priming pump (C)

PRODUCT > Intelligent Self-priming Pump > Intelligent self-priming pump (C)

Intelligent self-priming pump (C)

WORKING CONDITION

Max. liquid temperature

+100

Max. ambient temperature

+40

Max. suction

+8.5m

Insulation

Class F

Waterproof rating

IP44

Duty cycle

S1

Input voltage

Single phase, 220V, 50/60Hz
(
Other input voltages can be customized)

MODEL INSTRUCTION

25WZB/A-128(A)

25Inlet&outlet diameter (mm)

WZB: Self-priming pump

A: Product series

128: Power (W)

A: Adaptive fucntion

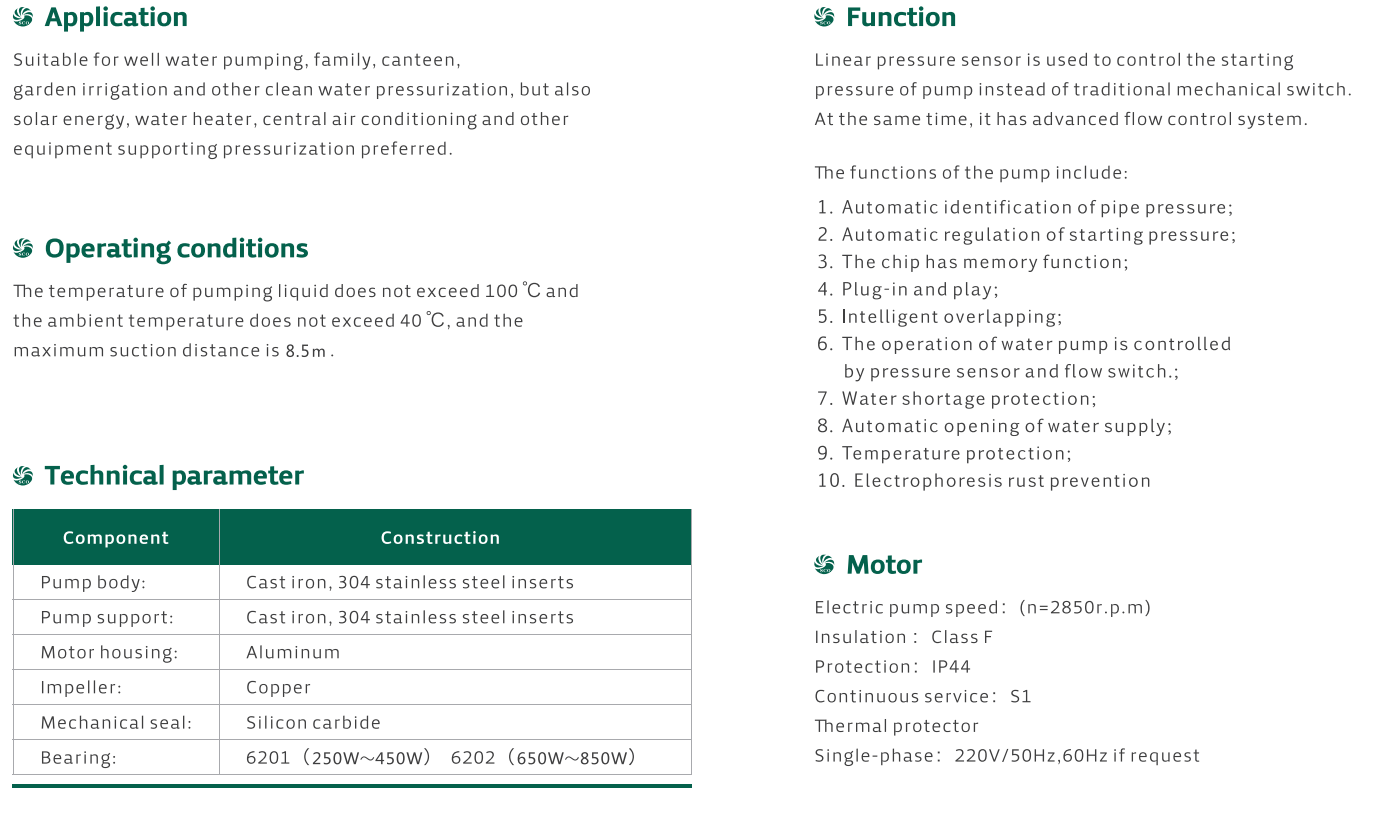

PRODUCT FEATURE

1, Adaptive function
Automatically identify the pipe pressure
Automatically regulate the starting pressure
2, Dual control system (pressure&flow switch)
Support stepless pressure regulation for pump with 0-100m head
3, Water shortage protection
4, Auto-start when tap water re-comes
5, Frequent start&stop protection
6, Thermal protection
7, Timing function (optional)
8, Electrophoresis, corrosion&rust resistant
9, Plug and play
10, Intelligent learning and memory function

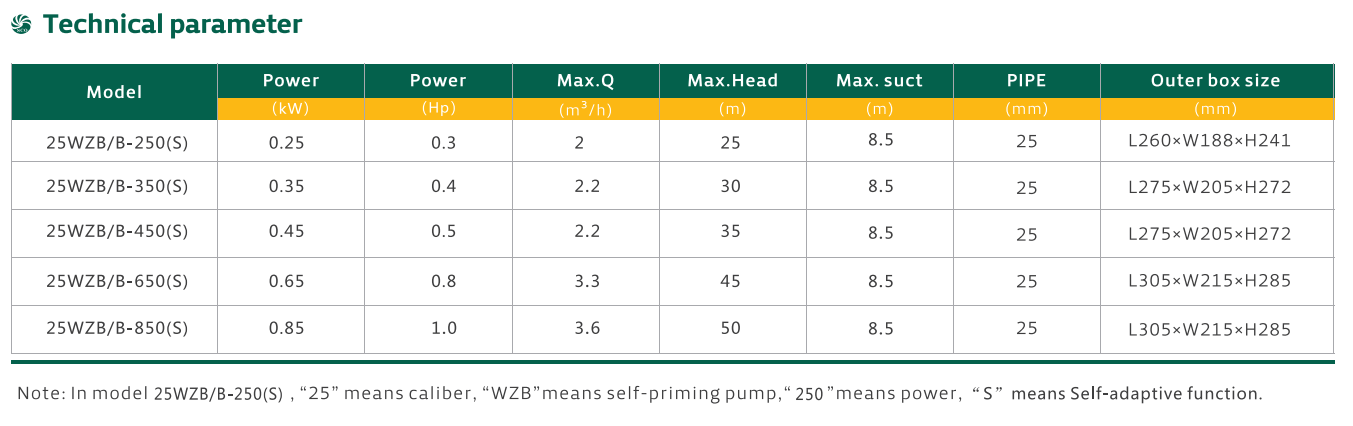

TECHNICAL PARAMETER  (n=2850r/min)

Model

Power
(W)

Power
(HP)

Max. flow
(m³/h)

Max. flow
(l/min)

Max. head
(m)

Max. suction
(m)

Inlet&Outlet
(inch)

25WZB/C-200(S)

200

0.3

2.0

33

25

6

1"×1"

25WZB/C-300(S)

300

0.4

2.2

37

30

8.5

1"×1"

25WZB/C-400(S)

400

0.5

2.2

37

35

8.5

1"×1"

25WZB/C-600(S)

600

0.8

3.3

55

40

8.5

1"×1"

25WZB/C-800(S)

800

1.1

3.6

60

45

8.5

1"×1"
